Technical Product Details
| Material Alloy Grades | Non-Heat-Treatable Marine Grade 5052 | Heat-Treatable Structural Grade 6061 |
| Governing Specifications | ASTM B209 / ASME SB209, EN 485, EN 573, JIS H4000, AMS 4027, AMS 4015 |
| Supply Configurations | Slit Coils, Pancake Coils, Traverse Wound Coils, Level Flat Strips |
| Dimensional Scope | Thickness: 0.1 mm to 4.0 mm | Width: 100 mm to 1600 mm | Custom Slit Widths |
| Available Tempers | 5052 (O, H12, H14, H16, H18, H32, H34) | 6061 (O, T4, T6, T651, H112) |
| Surface & Protective Options | Mill Finish, Bright Polished, PVC Film Coated, Color Coated (Polyester/PE, PVDF/Fluorocarbon) |
Table of Contents

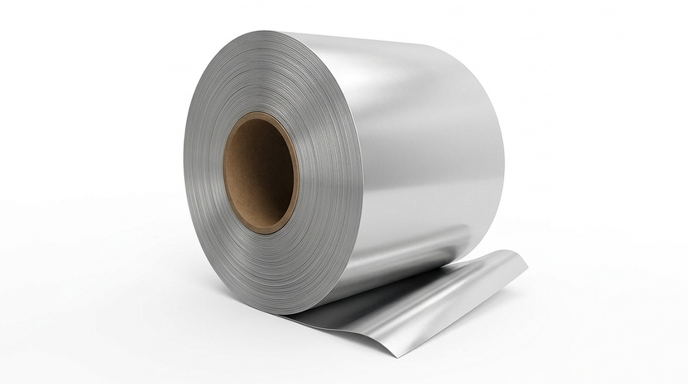

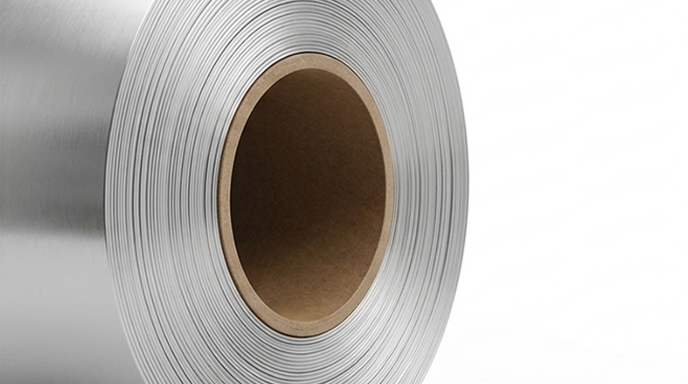

Nirvaan Overseas is a premier Aluminium 5052 Coil Supplier in India and Aluminium 6061 Coil Supplier in India, delivering cold-rolled coils slit to precise width tolerances. Formulated with magnesium and silicon additives, our lightweight stock provides high strength-to-weight ratios for marine, automotive, and structural framing applications.
As a dedicated Aluminium Strip Supplier, we maintain ready inventory of corrosion-resistant Aluminium 5052 Coil and heat-treatable Aluminium 6061 Coil for load-bearing frameworks. Our processing facility supplies custom Aluminium 5052 Slit Coil and Aluminium 6061 Slit Coil rolls laminated with protective PVC film to prevent surface scratching.
Operating as an established Aluminium Coil Exporter, we process custom-slit Aluminium 5052 Strip Coil and Aluminium 6061 Strip Coil stock in tempers ranging from O to T6. Every dispatch complies with ASTM B209 specifications, complete with EN 10204 3.1 MTCs for rapid shipment to Saudi Arabia, UAE, Germany, Singapore, and the US.
| Parameter | Technical Details |
|---|---|
| Standards | ASTM B209 / ASME SB209, EN 485, EN 573, JIS H4000, AMS 4027, AMS 4015 |
| Alloy Grades | Aluminium 5052, Aluminium 6061 |
| Supply Form | Continuous Slit Coils, Master Coils, Cut-to-Length Strips |
| Thickness Scope | 0.1 mm to 4.0 mm |
| Width Scope | 100 mm to 1600 mm (Custom narrow slitting available down to tight tolerances) |
| Length Scope | Continuous Coil / Cut Strips up to 6000 mm |
| 5052 Tempers | O, H12, H14, H16, H18, H19, H22, H24, H32, H34 |
| 6061 Tempers | O, T4, T6, T651, H112 |
| Surface Finish | Mill Finish, Bright, Polished, Hairline, Brushed, Embossed |
| Coating Options | PVC Coated, PE Coated, PVDF / Fluorocarbon, Polyurethane |
| Process Type | Cold-Rolled (CR) Coil, Hot-Rolled (HR) Coil |
| Element | Alloy 5052 Specification (%) | Alloy 6061 Specification (%) |
|---|---|---|
| Magnesium (Mg) | 2.20 – 2.80 | 0.80 – 1.20 |
| Silicon (Si) | 0.25 Max | 0.40 – 0.80 |
| Iron (Fe) | 0.40 Max | 0.70 Max |
| Copper (Cu) | 0.10 Max | 0.15 – 0.40 |
| Chromium (Cr) | 0.15 – 0.35 | 0.15 – 0.35 |
| Zinc (Zn) | 0.10 Max | 0.25 Max |
| Titanium (Ti) | — | 0.15 Max |
| Manganese (Mn) | 0.10 Max | 0.15 Max |
| Aluminium (Al) | Remainder | Remainder |
| Property Parameter | 5052-H32 (Work Hardened) | 6061-T6 (Heat Treated) |
|---|---|---|
| Tensile Strength (MPa / PSI) | 230 MPa / 33,000 PSI | 310 MPa / 45,000 PSI |
| Yield Strength (MPa / PSI) | 193 MPa / 28,000 PSI | 276 MPa / 40,000 PSI |
| Shear Strength (PSI) | 20,000 PSI | 31,000 PSI |
| Elongation in 2" (%) | 12% – 18% | 12% – 17% |
| Brinell Hardness (HB) | 60 HB | 95 HB |
| Density (g/cm³) | 2.68 g/cm³ | 2.70 g/cm³ |
| Melting Point | 607°C – 649°C | 582°C – 652°C |
| Selection Factor | Alloy 5052 (Al-Mg Non-Heat-Treatable) | Alloy 6061 (Al-Mg-Si Heat-Treatable) |
|---|---|---|
| Main Benefit | Excellent formability & marine corrosion resistance | High structural yield strength (40,000 PSI in T6) |
| Strength Class | Medium strength (Work-hardened by cold rolling) | High strength (Precipitation hardened by heat treatment) |
| Welding Fit | Excellent arc weldability with minimal strength loss | Good weldability, but heat-affected zone loses T6 temper |
| Forming Ability | Superior cold bending and deep drawing capability | Moderate forming in T6 temper; best formed in O temper |
| Best Uses | Fuel tanks, marine panels, enclosures, sheet metal | Structural frames, bridges, truck beds, machined parts |
Operating as a premier Aluminium 5052 Coil Supplier in India, Aluminium 6061 Coil Supplier in India, and global Aluminium Coil Exporter, we maintain active shipping routes to major international industrial hubs:
Mumbai
Pune
Chennai
Faridabad
Saudi Arabia
Qatar
Oman
Kuwait
Germany
Italy
Netherlands
Poland
Singapore
Malaysia
Vietnam
Indonesia
Michigan
Illinois
Texas
| Inspection Stage | Testing & Compliance Standard |
|---|---|
| Dimensional Verification | Calibrated micrometer checks for precise thickness (0.1–4.0 mm), slit width, and edge camber tolerances. |
| Chemical & Spectro Testing | In-house XRF Spectro analysis to verify exact Mg, Si, and Cr composition limits per ASTM B209. |
| Mechanical & Hardness Testing | Tensile strength, yield proof, and Brinell hardness testing to confirm temper ratings (H32, T6). |
| Surface Inspection | Optical scanning to guarantee zero pinholes, water stains, scratches, rolling scale, or edge burrs. |
| MTC & Certification | Full EN 10204 3.1 / 3.2 Material Test Certificates with NABL-accredited laboratory reports. |
| Third-Party Inspection | Pre-dispatch TPI available upon request via SGS, TUV, Bureau Veritas, DNV, or Lloyds. |
A: Aluminium 5052 Coil is a non-heat-treatable alloy known for high formability and marine corrosion resistance, while Aluminium 6061 Coil is a heat-treatable alloy engineered for high-strength structural framing.
A: Yes, an Aluminium Strip Supplier can supply 6061 in T6 temper for high strength, or in O temper (annealed) if extensive bending or stamping is required before heat treatment.
A: Yes, Grade 5052 contains magnesium, giving it high resistance to marine atmospheres, saltwater corrosion, and chemical pitting.
A: We apply protective PVC or PE film onto the coil surface and wrap orders with paper interleaving and moisture-proof packing inside wooden crates.
A: As a reliable Aluminium Coil and Strip Exporter, we regularly ship certified cargo to Saudi Arabia, UAE, Qatar, Oman, Kuwait, Germany, Italy, Poland, Singapore, Malaysia, Vietnam, Indonesia, and the United States.
Contact Nirvaan Overseas—your trusted Aluminium 5052 Coil Supplier in India, Aluminium 6061 Coil Supplier in India, and global Aluminium Strip Supplier—for factory-direct pricing, custom slitting, protective film options, EN 10204 3.1 MTCs, and fast shipping. If you have any questions about the products or services, send us an
