Technical Product Details
| Primary Featured Alloys | Austenitic Stainless Steel 304 (UNS S30400), Stainless Steel 304L (UNS S30403) |
| Manufacturing Standards | ASTM A240 / ASME SA240 (Plate/Sheet), ASTM A182 / ASME SA182 (Forged Rings), BS 304S31 / 304S11 |
| Size Range | Thickness from 1 mm to 100 mm | Diameter up to 2000 mm |
| In-House Quality Verification | PMI Chemical Analysis, Vernier Caliper & Micrometer Dimensional Checks, Ultrasonic Testing (UT) per ASTM A388, EN 10204 3.1 Certification |
Table of Contents
Nirvaan Overseas is a premier SS 304 Rings & Circles Manufacturer in India, producing high-precision cut discs, blind blanks, and forged rolled rings. Using multi-axis laser, plasma, and abrasive waterjet profiling lines, we process SS 304 Circle Blanks and SS 304 Ring Blanks from plate stock to exact tolerances.
Our facility handles diameters up to 2000 mm and thicknesses from 1 mm to 100 mm. As a trusted SS 304 Rings & Circles Supplier and SS 304 Rings & Circles Exporter, every batch includes positive material identification, heat traceability, deburred edges, and EN 10204 3.1 certification.
| Specification | Technical Details |
|---|---|
| Material Grades | Stainless Steel 304 (UNS S30400), Stainless Steel 304L (UNS S30403) |
| Thickness Range | 1 mm to 100 mm |
| Outer Diameter (OD) | Up to 2000 mm |
| Form Options | Plate Cut Discs, Blind Blanks, Seamless Rolled Forged Rings |
| Cutting Technologies | CNC Laser, Plasma Cutting, Abrasive Waterjet (HAZ-Free), Machined Cut |
| Primary Standards | ASTM A240 / SA240, ASTM A182 / SA182 |

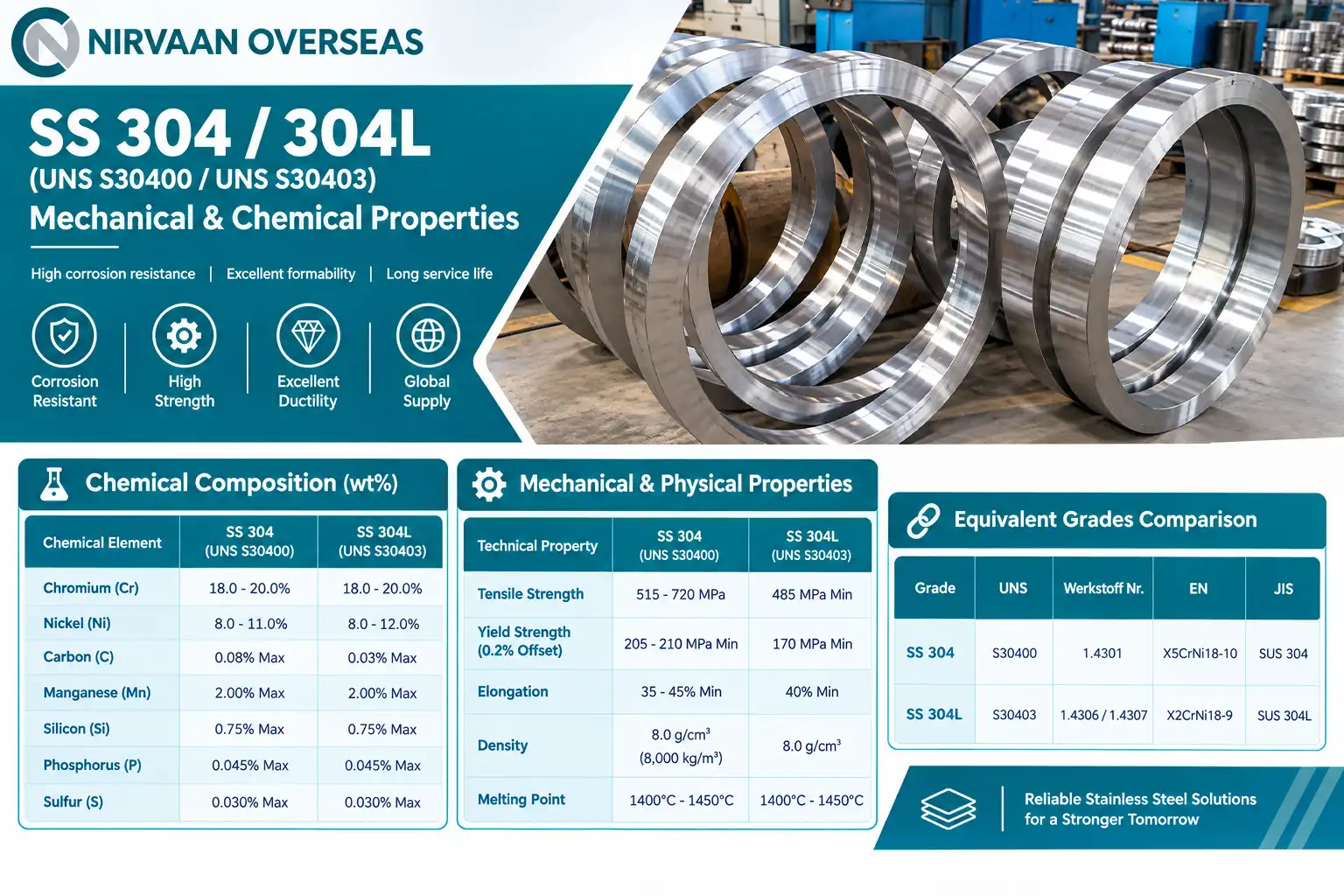

| Chemical Element | SS 304 (UNS S30400) | SS 304L (UNS S30403) |
|---|---|---|
| Chromium (Cr) | 18.0 - 20.0% | 18.0 - 20.0% |
| Nickel (Ni) | 8.0 - 11.0% | 8.0 - 12.0% |
| Carbon (C) | 0.08% Max | 0.03% Max |
| Manganese (Mn) | 2.00% Max | 2.00% Max |
| Silicon (Si) | 0.75% Max | 0.75% Max |
| Phosphorus (P) | 0.045% Max | 0.045% Max |
| Sulfur (S) | 0.030% Max | 0.030% Max |
| Technical Property | SS 304 (UNS S30400) | SS 304L (UNS S30403) |
|---|---|---|
| Tensile Strength | 515 - 720 MPa | 485 MPa Min |
| Yield Strength (0.2% Offset) | 205 - 210 MPa Min | 170 MPa Min |
| Elongation | 35 - 45% Min | 40% Min |
| Density | 8.0 g/cm³ (8,000 kg/m3) | 8.0 g/cm³ |
| Melting Point | 1400°C - 1450°C | 1400°C - 1450°C |
| Grade | UNS | Werkstoff Nr. | EN Standard | JIS |
|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | X5CrNi18-10 | SUS 304 |
| SS 304L | S30403 | 1.4306 / 1.4307 | X2CrNi18-9 | SUS 304L |
As a specialized SS 304 Rings & Circles Manufacturer in India, we employ three primary cutting processes matched to plate thickness and edge requirements:
Operating as a globally recognized SS 304 Rings & Circles Exporter, we ship certified wire spools and coils across key market hubs:
Mumbai
Pune
Chennai
Faridabad
Saudi Arabia
Qatar
Oman
Kuwait
Germany
Italy
Netherlands
Poland
Singapore
Malaysia
Vietnam
Indonesia
Michigan
Illinois
Texas
Every shipment dispatched by Nirvaan Overseas—a dedicated SS 304 Rings & Circles Supplier—undergoes structured quality verification:
| Inspection Method | Evaluation Parameters |
|---|---|
| Dimensional Inspection | Vernier calipers, micrometers, and 3D coordinate checking to verify outer diameter (up to 2000 mm), inner diameter, and thickness. |
| Ultrasonic Testing (UT) | Non-destructive scanning per ASTM A388 / EN 10228 to detect internal inclusions or plate laminations in thick cut blanks. |
| Chemical Analysis & PMI | Handheld Spectro PMI testing to verify low-carbon limits for 304L (0.03% max) versus standard 304 (0.08% max). |
| Certification | Mill Test Certificates per EN 10204 3.1, heat traceability, and optional Third-Party Inspection (TPI). |
A: Choose SS 304L (UNS S30403) if the rings or circles will be welded during vessel assembly. Its lower carbon content (0.03% max) prevents intergranular corrosion in the weld heat-affected zone.
A: As a direct SS 304 Rings & Circles Supplier, we produce custom-cut circles and forged rings up to 2000 mm in outer diameter.
A: Yes, we supply both solid SS 304 Circle Blanks and concentric SS 304 Ring Blanks with precise CNC-machined inner (ID) and outer (OD) dimensions.
A: We process plate-cut discs and forged rings in thicknesses ranging from 1 mm up to 100 mm.
A: Yes, as an established SS 304 Rings & Circles Exporter, every dispatch includes EN 10204 3.1 MTCs with full chemical, mechanical, and PMI test data.
Contact Nirvaan Overseas—your direct SS 304 Rings & Circles Manufacturer in India for stock availability, custom waterjet/laser cutting, and competitive export pricing.
