SS 304 & 304L Valves Manufacturer, Supplier & Exporter

Industrial ASME B16.34 grade SS 304 and 304L stainless steel valves ready for dispatch from stock

Technical Product Details

Material Grade	Austenitic Stainless Steel 304 (UNS S30400 / Werkstoff 1.4301)
Governing Specifications	ASME B16.34, API 600, API 602, API 6D, BS EN ISO 17292, ASTM A351, ASTM A182
Supply Configurations	Cast Body Valves, Forged Body Valves, Flanged Ends, Screwed Ends, Socket Weld Ends
Dimensional Scope	Size Range: 1/2" to 14" (DN15 to DN350) \| Pressure Classes: 150#, 300#, 800#, 1500#
In-House Quality Verification	Positive Material Identification (PMI), Hydrostatic Shell & Seat Testing (API 598), Pneumatic Testing, Microstructure Analysis

Table of Contents

SS 304 Valves Overview
Technical Specifications
Types of SS 304 / 304L Valves Available
Pressure-Temperature Performance Parameters
Key Advantages of SS 304 Valves
Key Industrial Applications
Chemical Composition & Mechanical Properties
Global Supply & Export Network
Frequently Asked Questions
Get a Quote for SS 304 Valves

SS 304 Valves Overview

Nirvaan Overseas is a premier SS 304 Valves Manufacturer in India, precision-machining cast (ASTM A351 CF8) and forged (ASTM A182 F304) valve bodies. Engineered with 18% chromium and 8% nickel, Grade 304 austenitic stainless steel delivers robust atmospheric corrosion resistance and structural integrity across Class 150# to 1500# pressure ratings.

As a trusted Stainless Steel 304 Valves Manufacturer in India, every valve leaving our facility undergoes 100% API 598 hydrostatic shell and seat testing to guarantee zero-leakage performance under demanding process conditions. All shipments are supplied with complete EN 10204 3.1 Material Test Certificates (MTC) and third-party inspection reports.

Operating as an established SS 304 Valves Exporter, we regularly ship certified valve packages to major industrial hubs across Saudi Arabia, UAE, Qatar, Oman, Kuwait, Germany, Italy, Poland, Singapore, Malaysia, Vietnam, Indonesia, and the United States.

Technical Specifications

Parameter	Technical Details
Standards	ASME B16.34, API 600, API 602, API 6D, BS EN ISO 17292, API 598
Material Grades	ASTM A351 Grade CF8 / CF3 (Cast), ASTM A182 Grade F304 / F304L (Forged)
Pressure Class	150#, 300#, 800#, 1500#
Size Range	1/2" to 14" (DN15 to DN350)
End Connections	Flange Ends (RF, RTJ), Screwed Ends (NPT, BSPT), Socket Weld Ends (SW)
Seat / Trim Options	PTFE, RPTFE, Flexible Graphite, Stellite Hardfaced
Testing Compliance	API 598 (Hydrostatic Shell & Seat, Pneumatic Seat Test), ISO 5208

Types of SS 304 / 304L Valves Available

SS 316 Ball Valves

SS 316 Globe Valves

SS 316 Check Valves

SS 316 Needle Valves

SS 316 Butterfly Valves

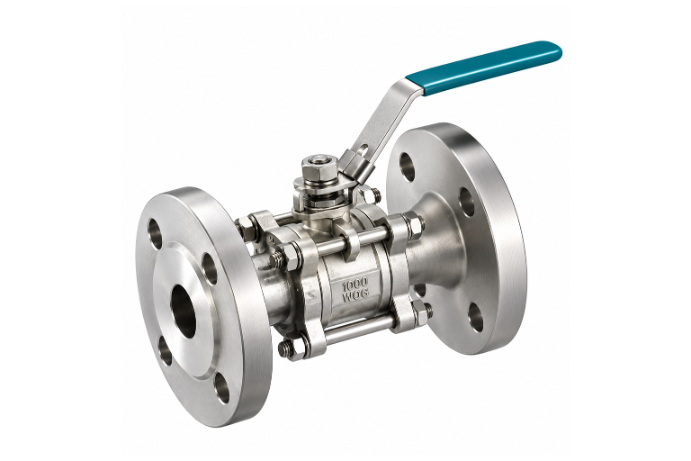

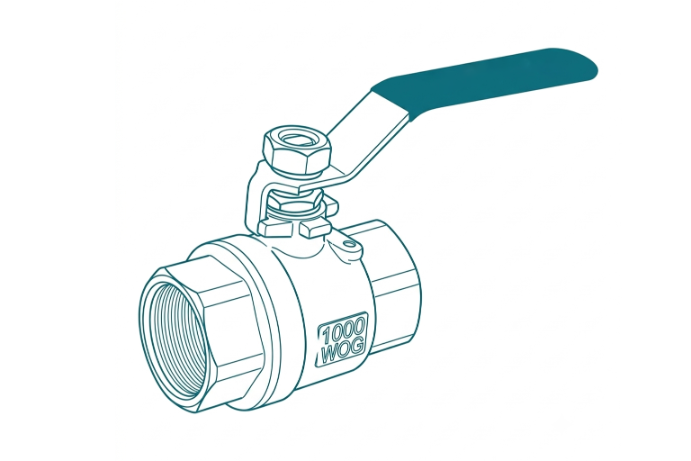

SS 304 Ball Valves: Delivers quick quarter-turn operation and bubble-tight shutoff; ideal for general liquid and gas isolation in processing plants.

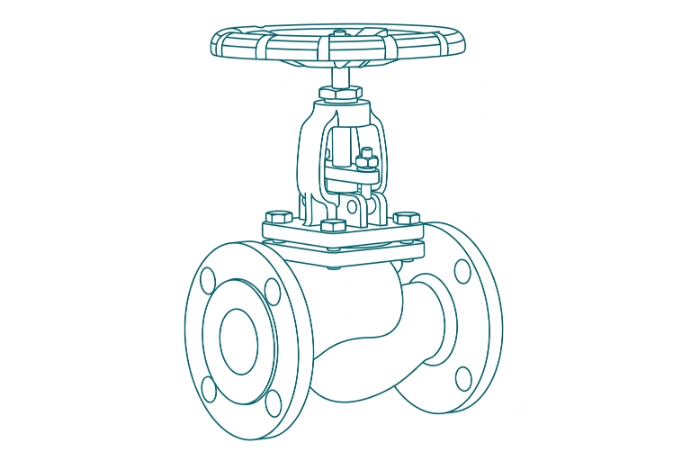

SS 304 Globe Valves: Designed for accurate flow throttling and reliable performance in high-pressure steam and water circuits.

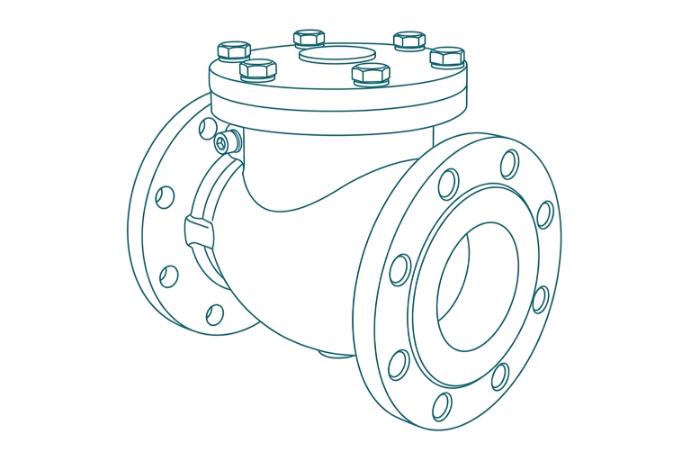

SS 304 Check Valves: Automatically prevents reverse flow, protecting upstream equipment like pumps and compressors from process backflow.

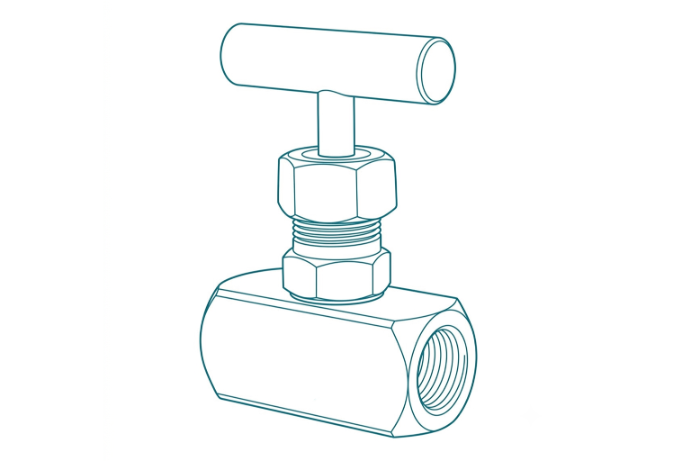

SS 304 Needle Valves: Features a fine-threaded stem for precise micro-flow regulation and fluid metering in instrument manifolds and testing setups.

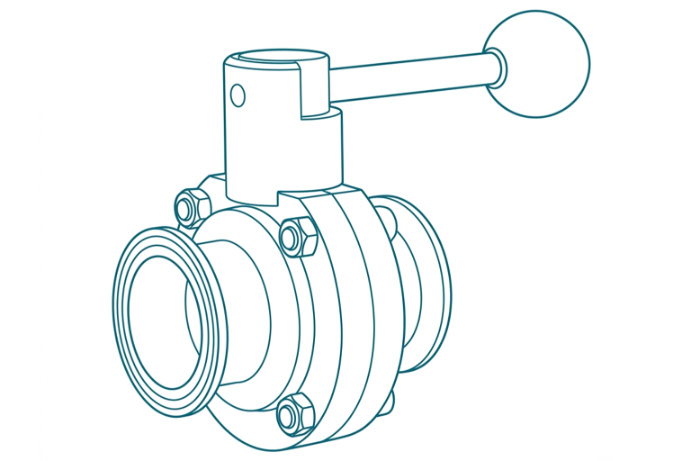

SS 304 Butterfly Valves: Provides a compact, space-saving design with low pressure drop for flow control in large-diameter piping systems.

Pressure-Temperature Performance Parameters

Designed to ASME B16.34 standards, our Grade 304 valve bodies manage thermal stresses and pressure drops. Below are the maximum working pressure capabilities across operational temperatures:

Pressure Class	Max Working Pressure at 38°C (100°F)	Max Working Pressure at 200°C (392°F)	Max Working Pressure at 400°C (752°F)
Class 150#	275 PSI (19.0 Bar)	200 PSI (13.8 Bar)	140 PSI (9.7 Bar)
Class 300#	720 PSI (49.6 Bar)	600 PSI (41.4 Bar)	490 PSI (33.8 Bar)
Class 800# (Forged)	1920 PSI (132.4 Bar)	1600 PSI (110.3 Bar)	1300 PSI (89.6 Bar)
Class 1500#	3600 PSI (248.2 Bar)	3000 PSI (206.8 Bar)	2450 PSI (168.9 Bar)

Key Advantages of SS 304 Valves

Atmospheric & Organic Acid Resistance: 18% chromium content forms an instant passive oxide layer that prevents surface oxidation and rusting in potable water and organic fluid lines.
Cryogenic Impact Toughness: The non-magnetic austenitic matrix maintains excellent mechanical notch toughness at temperatures as low as -196°C without brittle failure.
Zero-Leakage Sealing Performance: Precision CNC-machined disc and seat surfaces combined with high-grade PTFE or flexible graphite packing guarantee zero-leakage compliance under API 598 protocols.
Smooth Internal Flow Path: Clean investment cast (CF8) and forged (F304) internal passages prevent media accumulation and minimize pressure drop across the body cavity.
High Weldability & Fabrication Integrity: Low susceptibility to thermal cracking allows easy inline welding of socket weld and butt weld end configurations without pre-heat treatment.

Key Industrial Applications

Food, Beverage & Sanitary Processing: Hygienic flow control in dairy product pipelines, brewery lines, and CIP (Clean-in-Place) fluid systems.
Municipal Water Treatment & Desalination: High-pressure feed control, pump isolation, and filtration manifold loops.
Chemical & Organic Solvent Handling: Conveyance of nitric acid solutions, organic solvents, and industrial process wastewater.
Power Generation & Steam Utilities: Auxiliary boiler feedwater isolation, condensate recovery lines, and cooling tower piping.
Pulp, Paper & Textile Lines: Starch liquor control, general utility steam lines, and dye-house fluid isolation.

SS 304 Chemical Composition & Mechanical Properties

Equivalent Grades Standard Table

Standard Designation	Specification Detail
UNS Designation	UNS S30400
Werkstoff Nr.	1.4301
EN Standard	X5CrNi18-10
JIS (Japan)	SUS 304
BS (UK)	304S31
AFNOR (France)	Z7CN18-09
Cast Valve Standard	ASTM A351 Grade CF8
Forged Valve Standard	ASTM A182 Grade F304

Chemical Composition (%)

Element	Limit Value (%)
Chromium (Cr)	18.0 – 20.0
Nickel (Ni)	8.0 – 11.0
Carbon (C)	0.08 max
Manganese (Mn)	2.00 max
Silicon (Si)	1.00 max
Phosphorus (P)	0.045 max
Sulfur (S)	0.030 max

Industrial Valve Mechanical Properties

Mechanical Property	Value
Tensile Strength (Min)	75,000 PSI / 515 MPa
Yield Strength (0.2% Offset, Min)	30,000 PSI / 205 MPa
Elongation (% in 50mm, Min)	35 %
Density	8.0 g/cm³
Melting Point	1400 °C (2550 °F)

Global Supply & Export Network

Operating as an established SS 304 Valves Exporter, we maintain an active supply network to meet international project requirements across key industrial regions:

🇮🇳 India

Mumbai
Pune
Chennai
Faridabad

Middle East

Saudi Arabia
Qatar
Oman
Kuwait

Europe

Germany
Italy
Netherlands
Poland

Asia Pacific

Singapore
Malaysia
Vietnam
Indonesia

🇺🇸 United States

Michigan
Illinois
Texas

Quality Assurance & Inspection

Inspection Stage	Testing & Compliance Standard
Dimensional Verification	Calibrated micrometer checks for face-to-face (ASME B16.10), flange PCD, and wall thickness tolerances.
Chemical & PMI Testing	100% In-House XRF Spectro testing to verify 18–20% Chromium and 8–10.5% Nickel chemistry (CF8/F304).
Mechanical & Hardness Testing	Tensile strength, yield proof, and elongation testing to match ASTM A351 / ASTM A182 standards.
Surface Inspection	Optical scanning to guarantee zero pinholes, casting voids, chatter marks, or seat scratches.
MTC & Certification	Full EN 10204 3.1 / 3.2 Material Test Certificates with NABL-accredited laboratory reports.
Third-Party Inspection	Pre-dispatch TPI available upon request via SGS, TUV, Bureau Veritas, DNV, or Lloyds.

Frequently Asked Questions

Q: What is the casting equivalent for SS 304 valves?

A: The standard casting equivalent for Grade 304 stainless steel is ASTM A351 Grade CF8 (or CF3 for low-carbon 304L), commonly used for valve bodies, discs, and bonnets.

Q: What is the pressure rating scope for your SS 304 valves?

A: As a leading SS 304 Valves Manufacturer in India, we supply valves rated in Class 150#, Class 300#, Class 800# (Forged), and Class 1500# across size ranges from 1/2" to 14".

Q: Are these valves suitable for cryogenic operations?

A: Yes, Grade 304 maintains high impact strength and notch toughness down to -196°C, making it suitable for sub-zero liquid handling and cryogenic utility applications.

Q: What testing standards are applied prior to export?

A: Every valve undergoes 100% hydrostatic and pneumatic seat/shell testing according to API 598 and ISO 5208 before packing.

Q: Which regions do you export to as an SS 304 Valves Exporter?

A: As an active SS 304 Valves Exporter, we regularly ship certified valve packages to Saudi Arabia, UAE, Qatar, Oman, Kuwait, Germany, Italy, Poland, Singapore, Malaysia, Vietnam, Indonesia, and the United States.

Request a Quote for SS 304 Valves

Contact Nirvaan Overseas—your trusted SS 304 Valves Manufacturer in India, Stainless Steel 304 Valves Manufacturer in India, and global SS 304 Valves Exporter—for factory-direct pricing, custom dimension manufacturing, API 598 test certification, EN 10204 3.1 MTCs, and fast global dispatch. If you have any questions about the products or services, send us an
