Technical Product Details
| Material Grade | Stainless Steel 316 (UNS S31600 / Werkstoff Nr. 1.4401) |
| Governing Specifications | ASTM A240 / ASME SA240, AISI 316, EN 10088-2, DIN, BS, IS, AMS, JIS G4304, JIS G4305 |
| Surface Finishes | Cold Rolled 2B (Smooth, Matte/Semi-Reflective), BA, No.4, HRAP |
| Manufacturing Scope | Cold Rolled Strips, Precision Slitting Coils, Narrow Coils, Shim Stock |
| In-House Quality Verification | 100% In-House PMI handheld spectro testing, Vernier Caliper & Micrometer dimensional checks, Ultrasonic Testing (UT) |
Table of Contents

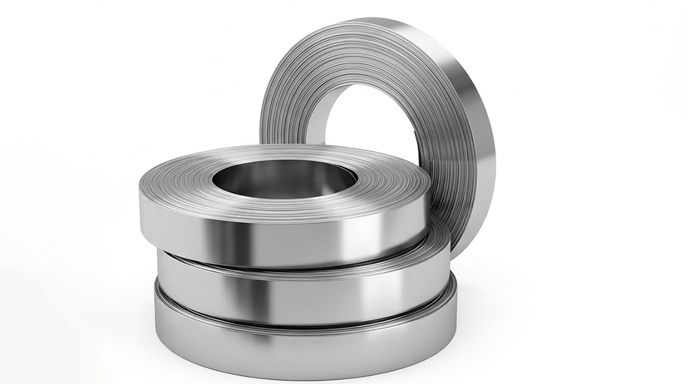

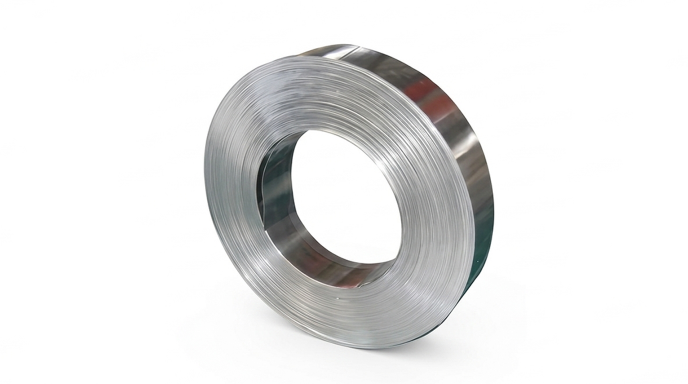

Looking for SS 316 2B Finish Strip for your manufacturing or fabrication needs? Nirvaan Overseas supplies SS 316 2B strips in different sizes and specifications for applications such as marine equipment, pharmaceutical machinery, chemical processing systems, offshore components, and food processing equipment.
Whether you need the strip for bending, stamping, forming, or general fabrication, you can explore the available sizes, specifications, surface finishes, applications, and customization options below to find a suitable solution for your requirement.
Nirvaan Overseas is an ISO-certified manufacturer, leading SS 316 2B strip supplier in India, and trusted SS 316 2B finish strip exporter. We offer quality-tested material with EN 10204 3.1 MTCs and export to the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Singapore, Germany, and United States.
| Technical Parameter | Specification Scope & Processing Capabilities |
|---|---|
| Governing Specifications | ASTM A240 / ASME SA240, AISI 316, DIN, BS, EN 10088-2, IS, AMS, JIS G4304/G4305 |
| Grade Variant | Stainless Steel 316 (UNS S31600 / Werkstoff 1.4401) |
| Form & Types | Precision Slitting Strips, Cold Rolled Strips, Narrow Coils, Shim Stock |
| Dimensional Scope | Thickness: 0.2 mm to 5.0 mm | Width: 200 mm to 3000 mm | Length: 500 mm to 12000 mm / Custom Coil |
| Surface Finish | Cold Rolled 2B (Smooth, Matte/Semi-Reflective), BA, No.4, No.1 (HRAP) |
| Edge Profiles | Slit Edge, Mill Edge, Deburred Edge, Rounded Edge |
| Value-Added Processing | Precision Custom Slitting, Continuous Rewinding, Custom Edge Conditioning |
| Element | SS 316 (UNS S31600) Specification Limits |
|---|---|
| Carbon (C) | 0.08% Max |
| Manganese (Mn) | 2.00% Max |
| Silicon (Si) | 0.75% Max |
| Phosphorus (P) | 0.045% Max |
| Sulfur (S) | 0.030% Max |
| Chromium (Cr) | 16.00% Min – 18.00% Max |
| Molybdenum (Mo) | 2.00% Min – 3.00% Max |
| Nickel (Ni) | 10.00% Min – 14.00% Max |
| Nitrogen (N) | 0.10% Max |
| Mechanical Property | SS 316 2B Strip Minimum Requirements |
|---|---|
| Tensile Strength (ksi min / MPa min) | 75 ksi / 515 MPa |
| Yield Strength (0.2% Proof ksi min / MPa min) | 30 ksi / 205 MPa |
| Elongation (% in 50 mm min) | 40% |
| Hardness (Rockwell B Max) | HRB 95 Max |
| Hardness (Brinell Max) | 217 HBW Max |
Calculate the approximate weight of your SS 202 2B Finish Strip:
| Feature | SS 316 2B Finish Strip (UNS S31600) | SS 304 2B Finish Strip (UNS S30400) |
|---|---|---|
| Primary Advantage | Excellent resistance to chloride, marine and chemical environments | Good all-round corrosion resistance for general applications |
| Alloy Composition | 16–18% Cr, 10–14% Ni, 2–3% Mo | 18–20% Cr, 8–10.5% Ni |
| Corrosion Resistance | Excellent for marine, chloride, acidic and demanding environments | Suitable for indoor, atmospheric and mild chemical environments |
| Cost & Budget | Higher-cost option for demanding applications | More economical choice for general-purpose use |
| Yield Strength (0.2%) | 30 ksi (205 MPa) min | 25 ksi (170 MPa) min |
| Pitting Resistance | Higher resistance in chloride-rich environments | Good resistance for general industrial conditions |
| Typical Selection | Preferred for marine, chemical, pharmaceutical and offshore applications | Preferred for food, architectural, appliance and general fabrication applications |
SS 316 2B Finish Strip contains around 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, giving it excellent resistance to pitting and corrosion. It is a preferred choice for marine, offshore, chemical, pharmaceutical, and other demanding applications where exposure to saltwater, chemicals, or moisture is common.
SS 304 2B Finish Strip contains around 18–20% chromium and 8–10.5% nickel, providing good corrosion resistance, strength, and formability. It is widely used for food processing equipment, kitchenware, architectural components, appliances, and general industrial applications where extreme corrosion resistance is not required.
Nirvaan Overseas supplies certified material with complete export documentation to key international markets for marine, chemical, and energy projects.
Mumbai
Pune
Chennai
Faridabad
Saudi Arabia
Qatar
Oman
Kuwait
Germany
Italy
Netherlands
Poland
Singapore
Malaysia
Vietnam
Indonesia
Michigan
Illinois
Texas
Every order dispatched from our ISO-certified processing facilities undergoes strict quality verification by experienced QA inspectors:
| Inspection Stage | Testing & Compliance Standard |
|---|---|
| Dimensional Checks | Calibrated Micrometer & Vernier Caliper verification for exact strip thickness, slit width, and camber tolerances. |
| PMI & Chemical Testing | 100% In-House XRF Spectro testing to verify exact grade heat chemistry before dispatch. |
| NDT & Defect Checks | Ultrasonic Testing (UT) and optical surface inspection to guarantee zero edge burrs, cracks, or laminations. |
| MTC & Lab Reports | Full EN 10204 3.1 / 3.2 MTC issued alongside NABL-accredited laboratory test reports. |
| Third-Party Inspection | Fully open for pre-dispatch TPI by SGS, TUV, Bureau Veritas, DNV, or Lloyds. |
SS 316 2B Finish Strip is commonly used in marine equipment, chemical processing, pharmaceutical machinery, food processing, offshore systems, water treatment, and industrial fabrication where higher corrosion resistance is required.
The main difference is the surface finish. SS 316 2B Strip has a smooth, uniform cold-rolled finish, while SS 316 BA Strip has a brighter and more reflective surface produced through bright annealing.
SS 316 contains around 2–3% molybdenum, which improves its resistance to pitting and corrosion caused by chlorides and saltwater. This makes it suitable for many marine and offshore applications.
Yes. Grade 316 provides good resistance to many chemicals and corrosive environments, making it suitable for chemical processing equipment, tanks, supports, and fabricated components.
Looking for a reliable SS 316 2B Finish Strip supplier? Partner with our ISO-certified, MSME and GeM-registered team for competitive wholesale pricing, custom slitting, EN 10204 3.1 MTCs, and prompt dispatch from our stocked locations. If you have any questions about the products or services, send us an email at
